UPS Vertiv Liebert GXT5-10KMVRT6UXLN montaje en Rack/torre

Descripción

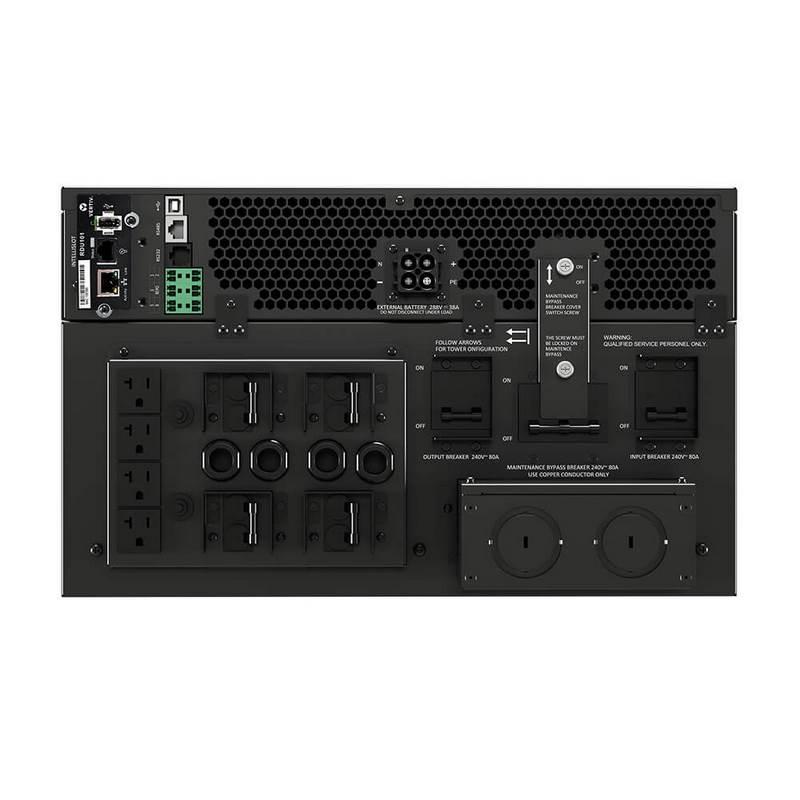

LA UPS Vertiv Liebert GXT5-10KMVRT6UXLN ofrece protección superior contra cortes de energía y acondicionamiento continuo de energía en un diseño flexible de torre / bastidor. Es ideal para aplicaciones de red centralizadas y de borde. Este UPS monofásico tiene una salida seleccionable por el usuario en 208V y 120V, sistema de 4 hilos L-L-N-G, entrada / salida de cableado estándar POD estándar con derivación de mantenimiento y POD opcionales disponibles. Una tarjeta SNMP / Web Vertiv RDU101 preinstalada de fábrica proporciona monitoreo remoto, SNMP y basado en UI web.

• SPECIFICATIONS
• Model GR-10K(L)
  Capacity 10KVA/9000W
• Input
• Nominal Voltage 208/220/230/240VAC
• Voltage Range 110-300VAC±3% at 50% load
• 176-300VAC±3% at 100% load
• Frequency 46-54Hz or 56-64Hz
• Power Factor 0.99
• Output Voltage 200/208/220/230/240VAC
• Voltage Regulation ±1%
• Frequency Range (Synchronized Range) 46-54HZ or 56-64HZ
• Frequency Range (Batt. Mode) 50HZ±0.1HZ or 60HZ±0.1HZ
• Current Crest Ratio 3:1
• Harmonic Distortion ≤≤3% THD(Linear load) ≤5% THD(Non-linear load)
• Transfer Time 0ms
• Wave Form Pure Sinewave
• Efficiency AC Mode 93%
• Battery Mode 90%
• Battery (Standard Model) Battery Type 12V7AH

• Numbers 16-20PCS (adjustable)
• Typical Recharge Time 9 hours recover to 90% capacity
• Charging Current Default:1.0 A ± 10%, Max.:2.0A ± 10%
• Charging Voltage 218.4 VDC ± 1%(based on 16 pcs batteries)
• Indicators LCD Panel UPS status, Load level, Battery level,
• Input/Output voltage, Discharge timer, and Fault conditions
• Alarm Battery Mode Sounding every 4 seconds
• Low Battery Sounding every second
• Overload Sounding twice every second
• Fault Continously sounding
• Physical(Standatd Model)
• Dimension,D*W*H(mm) UPS Unit:580*438*133(3U)
• Battery pack:668*438*88(2U)
• Net Weight UPS UPS Unit:18
• Battery Pack:51(16pcs)
• Environment Humidity 20-90 % RH @ 0- 40°C (non-condensing)
• Noise Level Less than 50dBA @ 1 Meter
• Management Smart RS232/USB Supports Windows
• 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
• Optional SNMP Power management from SNMP manager and web browser
